Advantages of paper tube slitter:

1. Smooth operation: the roll of raw paper is firm and both sides are flat.

2. Low noise: "bearing steel" double cutter shaft is not bent permanently.

3. Adopt long distance tensioning shaft design, so that the tension of the paper is greater and more uniform.

4. Strong practicability: the double knife can adjust the width between 2-1700mm arbitrarily.

5. Easy operation: both sides of the cut paper tape are smooth and smooth without burrs.

6. High efficiency: the output of single machine can be used for 2 to 3 tube rolling machines.

Operation process of paper tube slitter:

First, power on: open the electrical isolation switch (set in front of the electrical control cabinet), press the EMERCENCY STOP RESET and READY TO RUN buttons, and key TO open the MACHINE TO RUN (main operating table) TO check whether the voltage (380V), current is correct and stable. Turn on the hydraulic system power switch (set on the main hydraulic drive frame) and check whether the oil level of the main hydraulic drive system and the pressure gauge are correct and stable. Open the pneumatic stop valve (set on the air inlet pipe under the pneumatic control cabinet), and check whether the air pressure is correct (not less than 6.0bar) and stable.

Setting control: set the cutting menu according to the film type, thickness, length and width of the cutting plan. Bring up the corresponding BOPP film file from PDF. Set the winding length and width of corresponding specification film. Select the corresponding winding station, adjust the roller arm and roller, and install the paper core of corresponding specifications.

3. Material feeding, film piercing and film receiving: material feeding: according to the requirements of the cutting plan, according to the driving operation rules, according to the actual situation, the corresponding master roll is hoisted on the aging frame, and placed on the roll rack according to the internal and external selection direction of the corona surface, and clamped the steel core with the control button, leaving the steel core support arm and driving. Perforation: when there is no membrane on the cutting machine, it shall be perforated. With the perforating device and function keys of the slitting machine, one end of the original film is tied on the perforating link, and the perforating button is activated, so that the film is evenly distributed on each roll along the slitting process. Connect a film: when cutting machine have membrane, change of the assembly, the volume using vacuum membrane machine, film machine start to work position, first artificial roll slitting machine first traction on the upper film flattening and start the vacuum pump membrane, the membrane formation stage of adsorption on the membrane, with double-sided tape and cut tape under the redundant membrane, will put a roll of film flattening on the shelf and start the lower vacuum pump membrane formation of adsorption, with tape on adhesive paper layer and smooth film, joint to be neat, no wrinkle, and then turn off the vacuum pump up and down, will meet membrane open to working position.

Edit this section of paper pipe cutting machine use notes

1. Before the paper tube slitting machine is produced, check the switches of all mechanical appliances and whether the protector device is normal or not, and work until it is confirmed that there is no abnormality.

2. When the operator leaves the machine in the middle of production, the power shall be turned off. If any fault occurs on the machine, the power shall be cut off before effective measures are taken.

3. During the production and operation of paper tube slitting machine, don't force the tube too hard to prevent people from breaking.

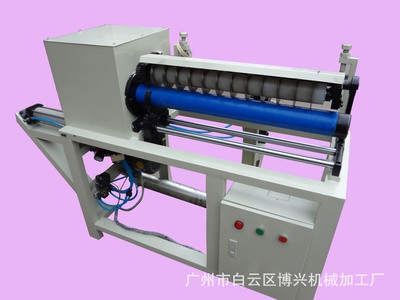

Edit this section of qgj-600 paper cutting machine

Product use:

Suitable for cutting paper pipe with small length and high yield.

Product features:

1. Simple, easy to operate and low price.

2. Pneumatic cutting.

3. Fast speed.

Technical parameters:

Inner diameter of cutting pipe: 15-80mm

Length of pipe cutting: 60-600mm

Pipe thickness: 0.5-10mm

Pipe cutting speed: 5-20 times/min

Number of cutter: 5. One operator

Electrical power: three phases of 1.1kw power supply

Cutting method: the circular cutter rotates synchronously

Cutting knife feed: pneumatic

Discharge: manual

Control mode: pedal
